20' standard - steel
| Description |
Non-metric |
Metric |
| Maximum payload |
62,391 lb |
28,300 kg |
| Dimensions |
20' x 8' x 8'6" |
20' x 8' x 8'6" |
| Volume |
1,165 cubic feet |
33 m3 |
| Door openings, width |
7' 8 1/16" |
2,350 mm |
| Door openings, height |
7' 5 1/2" |
2,274 mm |
| Internal, length |
19' 4 1/8" |
5,896 mm |
| Internal, width |
7' 8 1/2" |
2,350 mm |
| Internal, height to load line |
7' 10 7/32" |
2,393 mm |
| Weight,Gross |
67,197 lb |
30,480 kg |
| Weight,tare |
4,806 lb |
2,180 kg |
40' standard - steel
| Description |
Non-metric |
Metric |
| Maximum payload |
63,640 lb |
28,870 kg |
| Dimensions |
40' x 8' x 8'6" |
40' x 8' x 8'6" |
| Volume |
2,366 cubic feet |
67 m3 |
| Door openings, width |
7' 8 1/8" |
2,340 mm |
| Door openings, height |
7' 5 1/2" |
2,274 mm |
| Internal, length |
39' 5 11/16" |
12,032 mm |
| Internal, width |
7' 8 1/2" |
2,350 mm |
| Internal, height to load line |
7' 10 7/32" |
2,393 mm |
| Weight,Gross |
71,650 lb |
32,500 kg |
| Weight,tare |
8,010 lb |
3,630 kg |
40' high - steel
| Description |
Non-metric |
Metric |
| Maximum payload |
63,096 lb |
28,620 kg |
| Dimensions |
40' x 8' x 9'6" |
40' x 8' x 9'6" |
| Volume |
2,684 cubic feet |
76 m3 |
| Door openings, width |
7' 8 1/8" |
2,340 mm |
| Door openings, height |
8' 5 3/4"" |
2,585 mm |
| Internal, length |
39' 5 11/16" |
12.032 mm |
| Internal, width |
7' 8 1/2" |
2,352 mm |
| Internal, height to load line |
8' 10 1/4" |
2.698 mm |
| Weight,Gross |
71,650 lb |
32,500 kg |
| Weight,tare |
8,554 lb |
3,880 kg |
45' high - steel
| Description |
Non-metric |
Metric |
| Maximum payload |
60,960 lb |
27,650 kg |
| Dimensions |
45' x 8' x 9'6" |
45' x 8' x 9'6" |
| Volume |
3,036 cubic feet |
85 m3 |
| Door openings, width |
7' 8 1/8" |
2,340 mm |
| Door openings, height |
8' 5 3/4 |
2,585 mm |
| Internal, length |
44' 5 45/64" |
13,556 mm |
| Internal, width |
7' 8 1/2" |
2,352 mm |
| Internal, height to load line |
8' 10 1/4 |
2.698 mm |
| Weight,Gross |
71,650 lb |
32,500 kg |
| Weight,tare |
10,690 lb |
4,850 kg |
Note
Dimensions vary within container series.
For laden GOH containers it is the responsibility of the shipper to add the weight of the beams, around 15 kgs/pc. (20' equals 165kg for 11 beams, 40' 330kg for 22 beams).

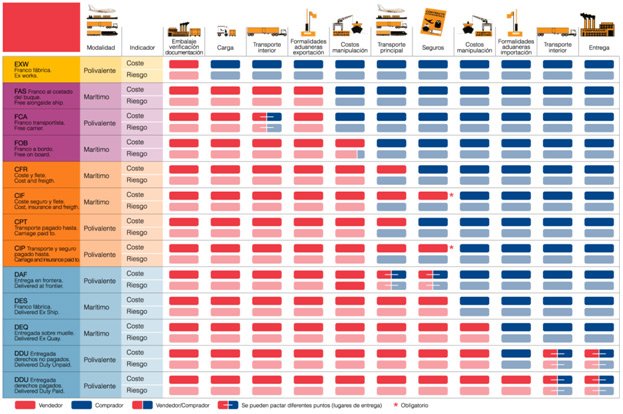

Inco Terms
